Abstract
Traditional LED strip connection methods rely on soldering processes, which require professional tools, operating skills and extra construction time, easily causing solder joint aging, short circuit risks and unstable signal transmission in long-term lighting projects. 3 Circuits 10mm Width Quick Plug For 5050 Dual color LED Strip Connector Solderless completely abandons complex welding operations, providing a pure plug-and-play connection solution for 10mm width 5050 dual-color LED strips. Featuring excellent electrical conductivity, standardized 3-circuit design and full compliance with international safety certifications, this solderless connector effectively simplifies on-site lighting construction, improves connection stability, and adapts to various indoor and outdoor dual-color LED lighting layout scenarios. This article systematically introduces its structural advantages, core features, standardized parameters, applicable scenarios, installation specifications and common technical troubleshooting, providing professional and SEO-friendly guidance for commercial decoration, architectural lighting and customized LED project construction.
Table of Contents — Click Any Item To Jump To Corresponding Section
- 1. Core Advantages Of Solderless LED Strip Connector Design
- 2. Complete Product Parameter Standard Specification
- 3. Unique Structural Design & Working Principle
- 4. Wide Application Scenarios For 5050 Dual Color LED Strip Projects
- 5. Standard Step-By-Step Installation & Connection Guide
- 6. Safety Certification & Quality Control Standards
- 7. FAQ About Solderless LED Connector Usage & Maintenance
- 8. Professional Customization & Technical Support Service
1. Core Advantages Of Solderless LED Strip Connector Design
Traditional soldered LED strip connections have long been a major pain point in lighting engineering construction. Welding operations demand precise manual control, and improper soldering easily leads to virtual welding, solder point oxidation, circuit short circuits and intermittent light failure. In addition, welded connections are irreversible, making later strip replacement, layout adjustment and maintenance extremely inconvenient.
The emergence of solderless quick plug connectors fundamentally solves the above problems. The optimized structural design allows users to complete stable circuit connection only through simple plugging operation, without electric soldering irons, tin wire or other professional auxiliary tools. For large-scale commercial lighting construction and multi-group dual-color LED strip layout projects, this design greatly shortens construction cycles and reduces manual operation errors.
Compared with traditional welded connectors and ordinary 2-pin LED connectors, this 3-circuit professional version has more prominent targeted advantages. The 3-circuit layout perfectly matches the circuit logic of 5050 dual-color LED strips, supporting independent color switching and synchronous light control of dual-color lamp beads, which cannot be realized by ordinary single-circuit and dual-circuit connectors.
Meanwhile, the 10mm width positioning structure is precisely customized for conventional 10mm wide 5050 lamp strips, achieving zero error fitting. It effectively avoids poor contact caused by model mismatch and size deviation, ensuring long-term stable power supply and signal transmission of dual-color LED lighting systems.
2. Complete Product Parameter Standard Specification
Standardized industrial parameters ensure universal compatibility and stable quality of LED connectors in different engineering scenarios. All technical indicators are strictly implemented in accordance with international industry standards and pass multiple professional certification tests, suitable for global commercial and civilian LED lighting projects.
| Parameter Item | Standard Specification |
|---|---|

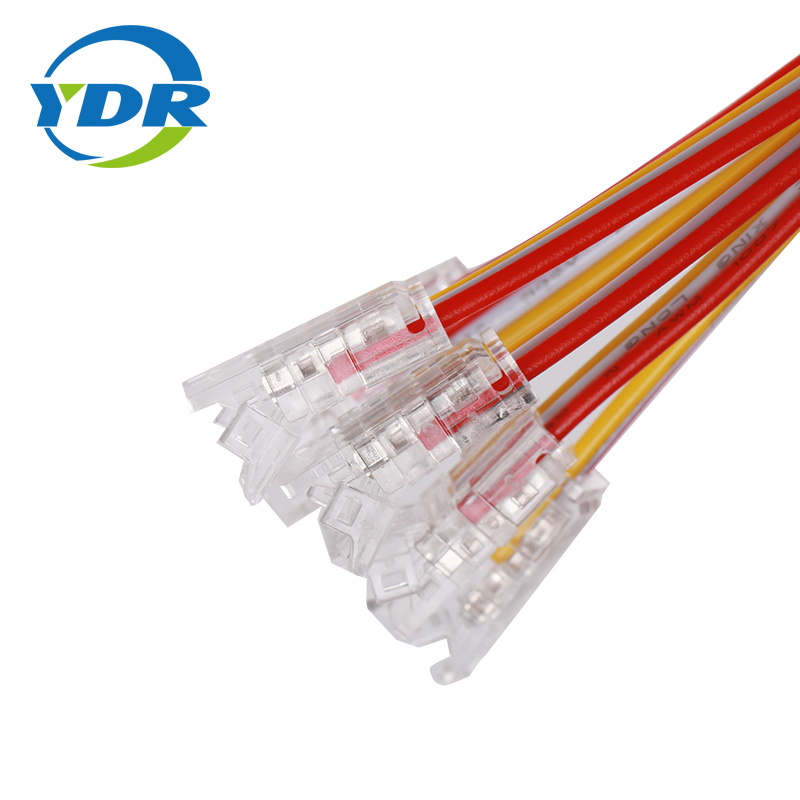

| Product Name | LED Strip Connector |
| Applicable Model | 3 Circuits 10mm Width 5050 Dual Color LED Strip |
| Pin Specification | 3Pin Professional Circuit Design |
| Matching Wire Gauge | UL1007 22AWG Standard Wire |
| Product Length | 120mm Fixed Standard Length |
| Core Performance | Solderless Connection, High Conductivity, Stable Transmission |
| Certification Standard | ISO9001, CE, UL, ROHS, REACH, VDE |
| Custom Service | OEM, ODM Customization Supported |
All parameter settings are oriented to the actual use needs of dual-color LED strips. The 3-pin circuit design fully adapts to the positive and negative electrode and color control circuit of dual-color lamp beads, ensuring that color switching, brightness adjustment and synchronous lighting effects are completely synchronized with the control system without signal delay or color distortion.
3. Unique Structural Design & Working Principle
3.1 Solderless Press-Fit Conductive Structure
The core innovation of the product is the precision metal shrapnel press-fit conductive structure. Instead of relying on welding fusion to conduct current, it uses high-elasticity copper shrapnels to closely fit the reserved conductive contacts on the surface of the LED strip. After plugging in place, the metal shrapnels form a stable physical contact conduction loop, realizing efficient current transmission and signal synchronization.
This physical contact conduction mode has better durability than welding. Welding points are prone to metal fatigue and oxidation after long-term power-on and thermal expansion and contraction, while high-quality copper shrapnels maintain stable elasticity and conductivity for a long time, adapting to long-term continuous lighting work.
3.2 10mm Precise Positioning Limit Structure
The internal limit card slot is strictly designed according to the 10mm width of 5050 LED strip. The precise clamping structure can fix the lamp strip firmly after insertion, effectively preventing loose contact and circuit breakage caused by external pulling and vibration. It is very suitable for installation in suspended ceilings, cabinet gaps, outdoor billboards and other vibrating environments.
3.3 3-Circuit Independent Partition Layout
The internal independent partition design separates the three groups of conductive circuits to avoid mutual crosstalk and short circuit risks. The independent circuit layout ensures that the dual-color independent control signal is not interfered, supporting free switching between two light colors of the 5050 dual-color strip and realizing rich lighting scene changes.
4. Wide Application Scenarios For 5050 Dual Color LED Strip Projects
With its solderless quick-install feature and professional dual-color circuit compatibility, the connector covers almost all mainstream scenarios of 5050 dual-color LED strip lighting layout, solving the construction difficulties of traditional welding processes in various complex environments.
- Indoor commercial decoration: Shopping mall atmosphere lighting, store display window lighting, hotel lobby ambient light layout
- Home intelligent lighting: Living room background wall light strip, cabinet buried light, bedroom atmosphere dual-color lighting
- Architectural decorative lighting: Outdoor building outline light, corridor passage light, facade decorative light strip
- Exhibition and stage lighting: Temporary exhibition booth layout, stage background dynamic dual-color light effect
- Equipment internal lighting: Advertising machine internal light strip, instrument indicator light, intelligent equipment auxiliary lighting
In all scenarios requiring frequent replacement, later adjustment and long-term stable power supply, 3 Circuits 10mm Width Quick Plug For 5050 Dual color LED Strip Connector Solderless shows irreplaceable application advantages. It simplifies engineering operation logic while ensuring the consistency and stability of the overall lighting effect.
5. Standard Step-By-Step Installation & Connection Guide
The solderless quick plug design reduces the installation threshold to the greatest extent. Ordinary construction personnel can complete standard connection operation without professional welding technology, and the standardized operation process ensures uniform installation quality of each interface.
- 1. Clean the contact surface: Wipe the conductive copper pad on the surface of the LED strip to remove dust, oil stains and oxide layers to ensure smooth conduction.
- 2. Open the connector buckle: Flip open the upper fixed buckle of the quick plug to expose the internal conductive shrapnel and card slot.
- 3. Align and insert the light strip: Aim the 10mm wide 5050 dual-color light strip at the card slot, accurately align the 3-circuit contact point and push it to the bottom.
- 4. Fasten the fixed buckle: Press the buckle tightly to make the internal metal shrapnel closely fit the light strip contact point to form a stable conductive loop.
- 5. Power on test: Connect the power supply and controller to test the light switching and brightness adjustment function to confirm normal operation.
The whole process requires no welding, no auxiliary consumables, and the single interface installation can be completed in a few seconds. For large-area multi-group light strip layout projects, it can save a lot of working time and effectively improve engineering efficiency.
6. Safety Certification & Quality Control Standards
LED connectors belong to electrical connection accessories, and their safety and stability directly determine the operational safety of the entire lighting system. This series of solderless connectors pass multiple international authoritative certifications and strictly implement standardized quality control procedures in the production process.
The product has obtained ISO9001 quality system certification, CE safety certification, UL electrical safety certification, ROHS environmental protection certification, REACH environmental testing and VDE electrical certification. All production materials meet international environmental protection and electrical safety standards, without harmful substances, and can be safely used in indoor closed space and outdoor open environment.
In terms of production quality control, each batch of products undergoes conductive aging testing, plugging and unplugging durability testing, high and low temperature environmental testing and circuit stability testing. The stable physical contact structure ensures that no poor contact or circuit failure occurs after long-term use.
As a professional LED connection accessory manufacturer, Shenzhen YDR Connector Co. Ltd. always adheres to strict industrial production standards, providing high-quality standardized connection accessories for global LED lighting engineering projects.
In actual engineering applications, certified accessories can effectively avoid potential safety hazards such as circuit heating, short circuit and electric leakage, ensuring the long-term safe and stable operation of dual-color LED lighting systems.
7. FAQ About Solderless LED Connector Usage & Maintenance
Reasonable use and simple daily maintenance can maximize the service life of solderless connectors. For formal engineering projects, standardized installation and regular inspection can completely avoid common connection faults.
For users who pursue efficient construction and stable lighting effects, 3 Circuits 10mm Width Quick Plug For 5050 Dual color LED Strip Connector Solderless is the most cost-effective and practical connection solution for current 5050 dual-color LED strip projects.
8. Professional Customization & Technical Support Service
Different LED lighting engineering projects have personalized demands in terms of wire length, interface type and structural matching. The product supports flexible OEM and ODM customization services, which can adjust product details according to actual project layout and installation environment requirements.
Whether it is standardized bulk engineering procurement or personalized customized matching of special lighting equipment, it can provide targeted solution support. The professional technical team can provide parameter matching guidance, installation scheme optimization and fault debugging services for different application scenarios.
Stable accessory quality and professional after-sales technical support are the core guarantees for the smooth progress of LED lighting engineering. Choosing standardized solderless quick plug connectors can effectively reduce construction difficulty, shorten project cycle and improve the overall stability of lighting systems.
For enterprises and engineering teams that need long-term stable LED connection accessories and customized technical solutions, 3 Circuits 10mm Width Quick Plug For 5050 Dual color LED Strip Connector Solderless can fully meet the standardized construction needs of various dual-color LED lighting projects.
