JST SH1.0mm Wire Harness

JST SH1.0mm Wire Harness: We supply JST ZH PH EH XH SH EX VH connector with UL1007 #18 to #26AWG wire cable high quality with ROHS/ISO/UL 1 years Warranty. we devoted ourselves to wire harness and connector manufacturing over 10 years,covering most of Asian, Europe and the Americas market. We are expecting become your long term partner in china.JST serials wire to board male Female connector cable assembly wire harness.Custom JST ZH PH EH XH SH EX VH 1.0 1.25 1.5 2.0 2.54mm Pitch 2/3/4/5/6 Pin Connectors Wire Harnesses.

Send Inquiry

Product Description

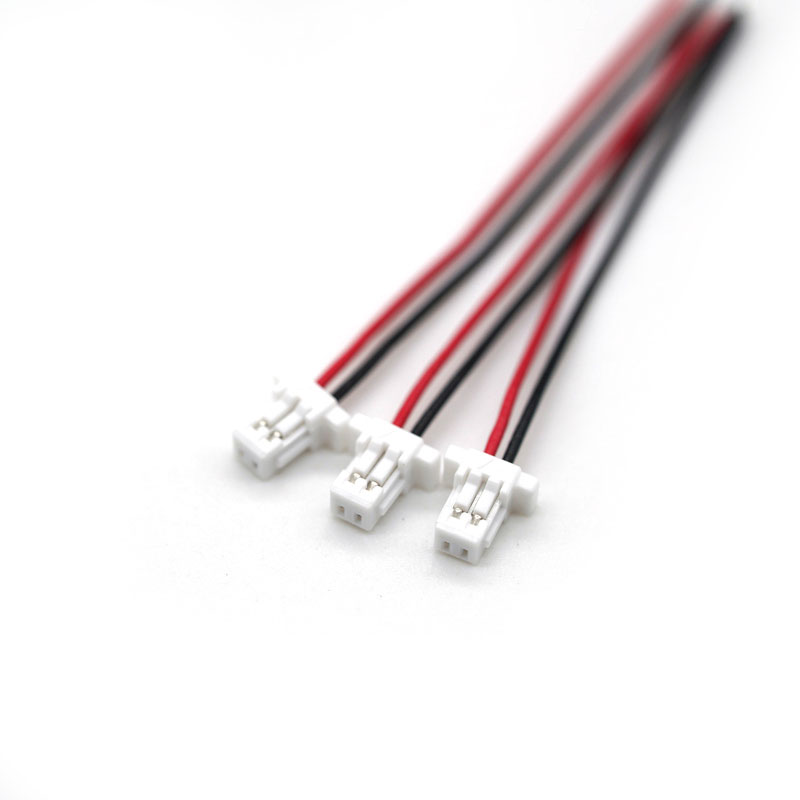

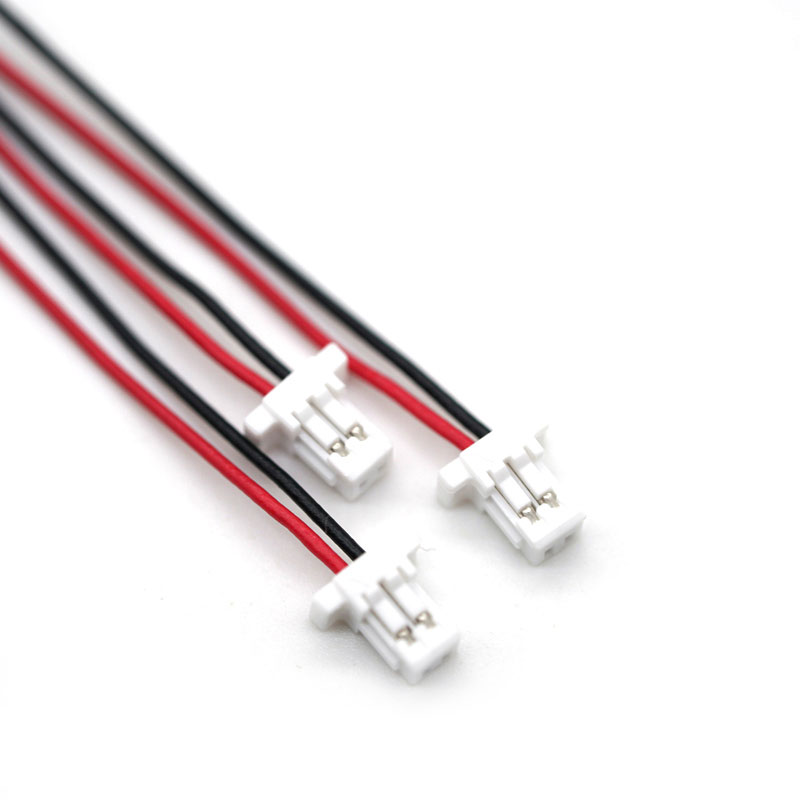

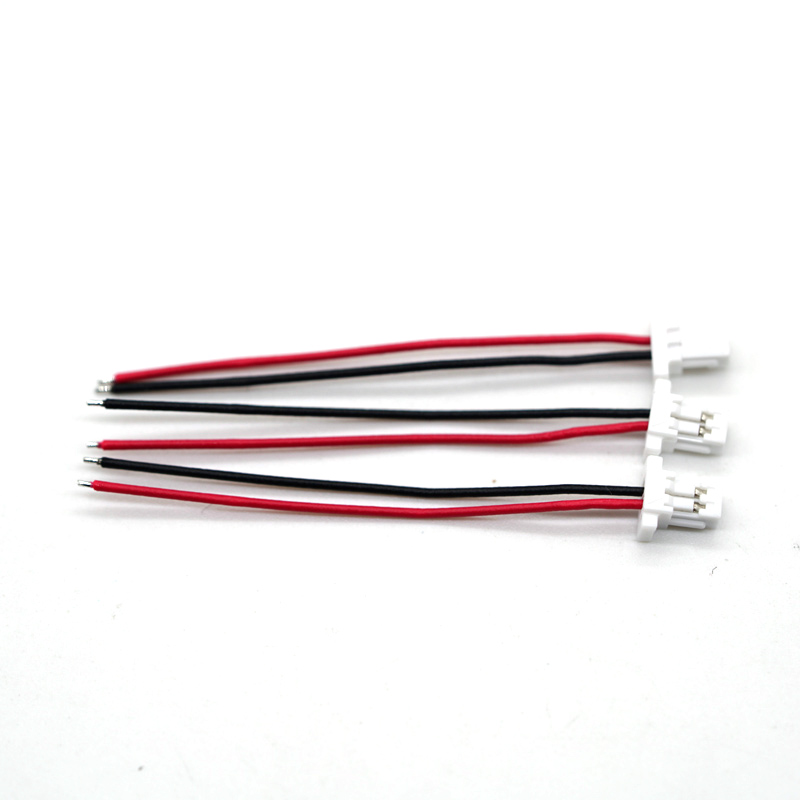

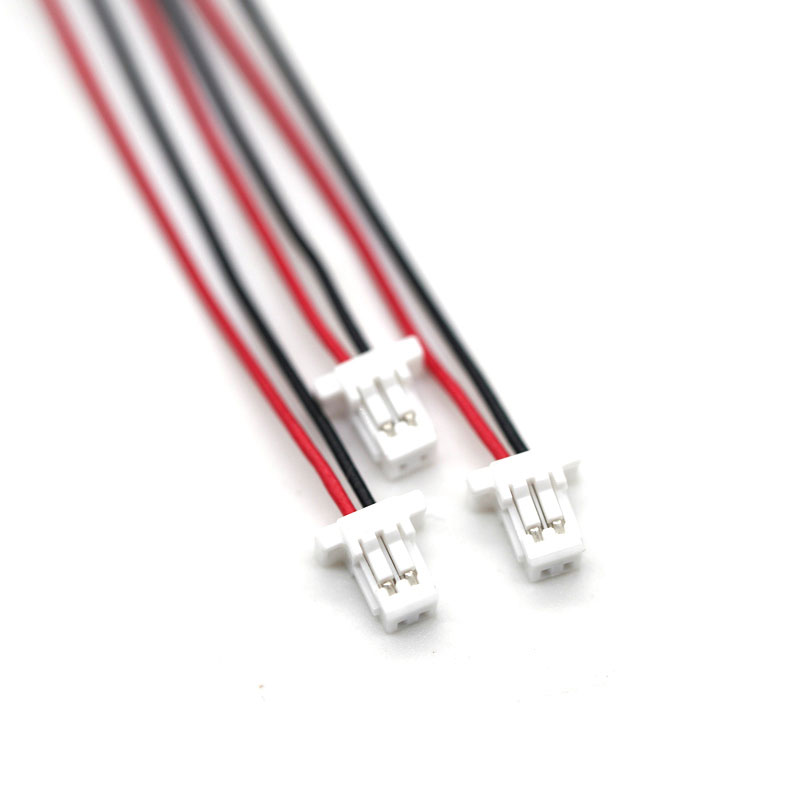

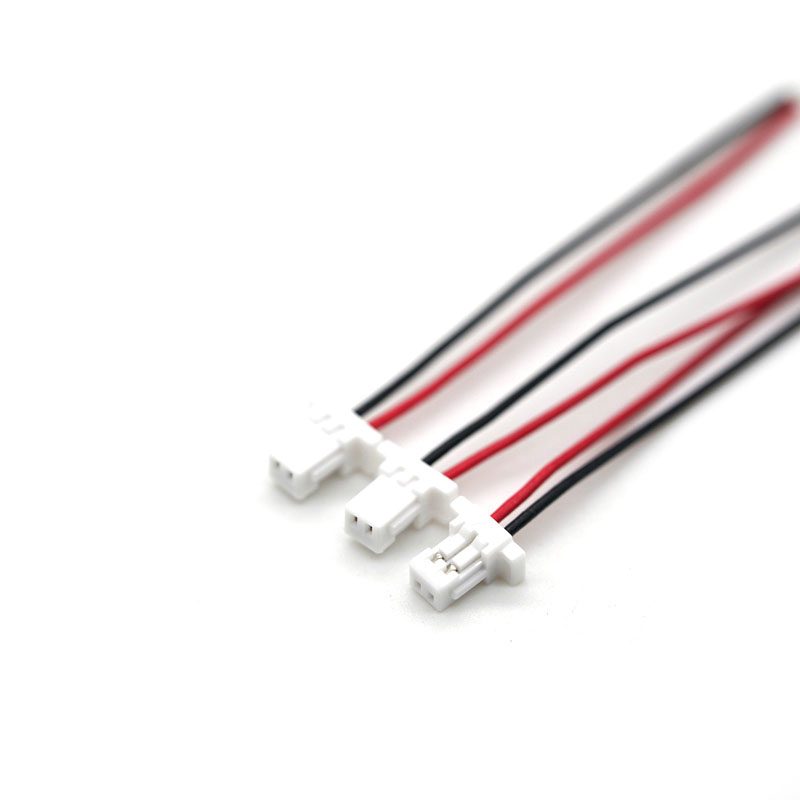

JST SH1.0mm Wire Harness


1.JST SH1.0mm Wire Harness Introduction

This JST ZH PH EH XH SH EX VH connector cable was the latest invention high quality with ROHS/ISO/UL and offer 1 years Warranty. It was made up with Rubber,Silica,PE,PVC + Copper. We devoted our selves to manufacture wire harness and connector many years, covering most of Asian, Europe and the Americas market. We are expecting become your long-term partner in china.


2.JST SH1.0mm Wire Harness Parameter (Specification)

JST connector type

FH0.5mm, SH1.0mm, GH1.25mm, ZH1.5mm, PH2.0mm, EH/XH: 2.5/2.54mm, VH3.96mm

Wire Range

28AWG,30AWG,32AWG,34AWG

Insulation

Rubber,Silica, PVC, PE, PA...etc

Wire

Tin plated Copper

Rated Temperature

-25℃to +85℃

Voltage Rating

250V AC/DC

Current Rating (Amps)

3A

Contact Resistance

100mΩ

Insulation Resistance

1000MΩ


3.JST SH1.0mm Wire Harness Feature and Application

 All materials are compliant with ROHS, or OEM

 The wire can be UL Cable or International Standard cable, as per customer assign.

 The JST connector  + UL #18-32AWG wire assembly cable can use as connection cable for Electrical, Automobile, automotive, Home Appliance and industry etc.


4.JST SH1.0mm Wire Harness Details

The Contact Material JST connector is Brass .  The insulation Material is Polyamide (PA6T), Nylon 6T, Glass Filled.

The conductor of UL1007 is tinned copper or bare copper, the insulation of UL1007 wire is Rubber, PVS, meet UL758 standard.


5.JST SH1.0mm Wire Harness Qualification

Qualified with ROHS/ISO/UL certified.


6.JST SH1.0mm Wire Harness Deliver,Shipping and Serving

 Shipping: by sea or by air.

Fedex/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door to Door;

By Air or by Sea for batch goods; Airport receiving;

Customers specifying freight for forwarders or negotiable shipping methods!

 100% on-time delivery

2.1 Delivery time: 3-7days for samples, 10-30 days for batch goods.

 With 24 hours online service for any question.


7.FAQ

1.Who are we?

We are based in Guangdong, China, started from 2010,sell to Domestic Market(50%),North America(10%),Southeast Asia(15%),Eastern Asia(15%),Western Europe(10%). There are total about 51-100 people in our company.


2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.


3.What can you buy from us?

Battery Connector,Terminal Wire Harness,USB Data Cable,Automotive Wire Harness and New Energy Wire Harness.


4. Why should you buy from us not from other suppliers?

We have automated production equipment,mature production technology, complete testing equipment,and modernization of management

structure. We are (ISO:9001) certified and committed to supply reliable products and quality service for all customers.


5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF.

Accepted Payment Currency:USD,CNY.

Accepted Payment Type: T/T,Cash.

Language Spoken:English,Chinese.


6.How can i get a sample?

Just check with our sales.


7.How to develop a new product base on an idea?

Tell us what you want, then we will design it for free.


8.Is your sample free or extra ?

Yes, we could offer the sample for free charge but do not pay the cost of freight.
