Why Is a Custom Wiring Harness Essential for Reliable Electrical Systems?

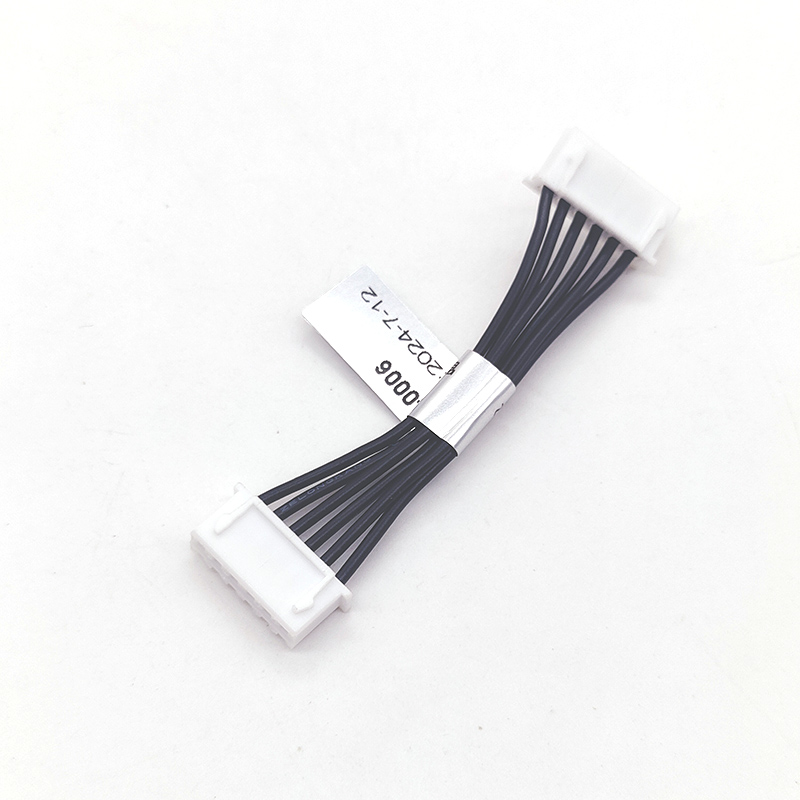

A Custom Wiring Harness is one of the most efficient solutions for organizing and optimizing electrical connections across automotive, industrial, medical, and consumer electronics applications. By grouping wires, terminals, and connectors into a single optimized assembly, it enhances performance, reduces installation time, and minimizes electrical failures. In my experience working with system integration projects, choosing a high-quality harness always results in higher reliability and safer operation. For companies like Shenzhen YDR Connector Co.,Ltd., developing tailored harness solutions ensures compatibility with complex devices and evolving industry standards.

---

What Defines a High-Quality Custom Wiring Harness?

A high-quality Custom Wiring Harness must deliver durability, conductivity, clear routing, and reliable long-term performance. The structure typically includes wires, terminals, insulation, connector housings, protection tubes, and labeling. The manufacturing process includes crimping, soldering, testing, and customizing lengths or layouts based on the customer's application.

Key Product Parameters

The following list highlights the essential specifications provided by professional manufacturers such as Shenzhen YDR Connector Co.,Ltd.:

• Wire Gauge: AWG 10–28

• Wire Material: Tinned copper / bare copper

• Insulation Material: PVC, XLPE, Silicone, PTFE

• Voltage Rating: 300V / 600V or customized

• Temperature Range: –40°C to +125°C (depending on insulation)

• Connector Options: JST, Molex, TE, Deutsch, AMP, Waterproof connectors

• Protection: Braided sleeves, PVC tubing, heat-shrink, corrugated conduit

• Testing: Continuity test, insulation resistance, tensile strength test

---

How Do the Technical Specifications Enhance Performance?

Below is a simple, professional table summarizing the typical technical specifications of our Custom Wiring Harness products:

These parameters ensure stable electricity transmission, improved safety, and excellent resistance to heat, vibration, and moisture.

---

Why Does a Custom Wiring Harness Improve System Efficiency?

A Custom Wiring Harness consolidates multiple wires into a structured solution. This offers several benefits:

• Simplified Installation: Reduces assembly time and eliminates wiring errors.

• Enhanced Durability: Protection sleeves and specialized insulation extend service life.

• Improved Safety: Minimizes the risk of short circuits and overheating.

• Optimized Space Management: Ideal for compact machinery, vehicles, and electronics.

• Better Performance: Reduces signal interference and maintains stable power flow.

Whether used in EV chargers, drones, industrial robotics, or household appliances, these harnesses enable much smoother integration and long-term reliability.

---

What Are the Application Effects of Using a Custom Wiring Harness?

• More stable electrical connections

• Strong resistance to vibration, abrasion, and temperature changes

• Reduced troubleshooting and maintenance work

• Improved signal clarity for communication wiring

• Better organization and a cleaner assembly layout

For companies aiming at high-precision engineering, adopting a well-designed harness significantly boosts product quality and reliability.

---

FAQ About Custom Wiring Harness

1. What factors affect the design of a Custom Wiring Harness?

The main factors include wire gauge, operating environment, current load, connector type, installation space, insulation material, and bending requirements. Each design is engineered to meet the specific electrical and mechanical needs of the application.

2. How does a Custom Wiring Harness improve equipment safety?

It prevents exposed wiring, reduces wear, improves insulation performance, and lowers the risk of sparks, overheating, or loose connections. The organized structure ensures secure routing and fewer failure points.

3. Can a Custom Wiring Harness be produced based on client drawings or samples?

Yes. Manufacturers like Shenzhen YDR Connector Co.,Ltd. support custom development based on drawings, physical samples, or even functional requirements, ensuring full compatibility with the target equipment.

4. What industries commonly use a Custom Wiring Harness?

Industries include automotive, industrial equipment, smart home devices, medical electronics, communication systems, and renewable energy systems. Each industry benefits from improved performance and reduced assembly complexity.

---

Contact Us

For customized solutions, professional engineering support, and high-quality wiring products, please contact Shenzhen YDR Connector Co.,Ltd. We provide tailored harness designs that meet global standards and ensure long-lasting performance for your projects.
